A coating solution from Surcotec extends the Labyrinth seal casing life span and saves costs for Eskom’s Palmiet Hydro installation.

Surcotec’s metal spray coating solution has extended the life span of a Labyrinth seal casing, thereby avoiding the need for costly replacement, leading to significant cost savings for key customer, Eskom, at its Palmiet Hydro installation.

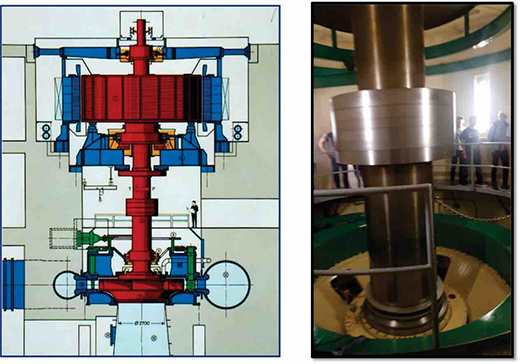

Eskom Palmiet Reversible Pump TurbineThe power station is located near Grabouw in the Western Cape on the Palmiet River, 2.0 km upstream of the Kogelberg Dam wall. The Palmiet Pumped Storage Scheme is part of a water transfer system. For generating purposes, water is released from the upper Rockview Dam to the two reversible pump turbines located 60 m below ground level.

Surcotec was requested by Eskom to submit a recommendation and procedure to prepare and coat the top runner Labyrinth seals on Unit 1 of the Turbine at Palmiet. “The casing base material in the Labyrinth seal area of the turbine, which is approximately 3.0 m in diameter, was showing signs of accelerated erosion due to a design issue,” explains Ian Walsh, sales and marketing manager at Surcotec, a surface coating technology specialist based in the Western Cape. “Consequently, the customer was experiencing severe material losses in the Labyrinth area and was forced to consider a complete and costly casing replacement.”

The Labyrinth area of the casing is an integral part and could therefore not be removed for repair without dismantling the complete unit, which would have been a cost-prohibitive and logistically impractical exercise. Walsh adds that an in situ weld repair was also not a viable option due to the possibility of distortion.

Surcotec recommended metal spray as the most practical and cost-effective solution. “With the correct alloy being applied, the coating would not only be an ideal repair solution but would also be an improvement on the original part,” notes Walsh.

With only a short window of opportunity during the plant’s scheduled outage, the Surcotec site team was mobilised to establish a contained work area. With limited access and given that the work area is 70 m below ground level, several logistical challenges had to be overcome prior to commencing with the repair.

Due to the possibility of the blast process interfering with adjacent parts, Surcotec used a blasting process known as ‘sponge blasting’ to contain the media and stop any ingress into sensitive areas of the turbine, whilst still ensuring that the correct preparation and blast profile was obtained.

Walsh confirms that the selection and deposition of specialised alloys using the twin wire arc system was applied with great success. “The turbine was returned to the customer on budget and within the agreed time frame.”

According to Walsh, when the turbine was opened for routine inspection 12 months later, the Labyrinth seal area was found to be in perfect condition with no loss of material. “This was particularly impressive given the fact that prior to the coating application, the customer was experiencing severe material losses on the Labyrinth area over the same period.”

Surcotec’s metal spray coating not only prevented the need for replacement of an expensive part, but also extended the life of the repaired part beyond its design intention, resulting in substantial savings for Eskom. Surcotec was subsequently invited to apply the same coating to Unit 2 at the same installation, which Walsh reports was again completed to the customer’s complete satisfaction.

Surcotec is a Level 1B-BBEE compliant company and the oldest established spray supplier in the Western Cape. “Our proudly earned reputation for being the only reliable spray supplier in the Province has positioned Surcotec as a preferred coating supplier to customers such as Eskom,” concludes Walsh.

Cape Town-based Surcotec, in a joint venture with Thermaspray, offers an extensive portfolio of engineering and thermal spray coating solutions that extend component life and assist OEM and end-user clients across Southern Africa in reducing costs and increasing production.

Surcotec’s coating services are supported by a fully equipped engineering workshop and an on-site machining division. A level 1 B-BBEE company, Surcotec is TNV ISO 9001 Quality Management certified and is certified as a Level 2 Nuclear Supplier to Eskom.
