Modern Quarrying

Screening and crushing industry leader McCloskey International is clearly demonstrating its continued growth with an exciting roster of new products and a significant presence at bauma 2019 in Munich, Germany from April 8-14.

Located at Stand FS.1211/1 in the Outdoor Exhibition Area South, the 913 m² space will showcase the newest products from McCloskey International, as well as serve as a venue for customers to meet and mingle with dealers from around the world. The pavilion will serve as a hub for the McCloskey Group of Companies.

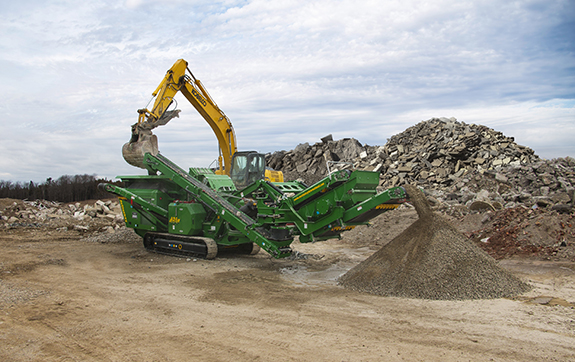

New McCloskey products at bauma 2019

New products lined up for unveiling

On display will be a new ground breaking screening product, which will be revealed at the show with details available as of April 8. The new screener will be joined by the latest crushers (compact and full-size impactors), stackers, and a compact sand plant from McCloskey Washing Systems. Lippmann-Milwaukee, the most recent member of the McCloskey group, will be on-site to unveil their exciting new products to the world.

Crushers will be in the spotlight, with the I54Rv3 and the I34R compact crusher lined up. Bauma is the perfect opportunity for McCloskey International to showcase the new features and benefits of the I Series impact crusher line, particularly well-suited for aggregate and concrete recycling applications.

The I54RV3 crusher has been enhanced with production boosting features, including a new main conveyor, new impactor transfer chute, prescreen with a steeper bottom deck for enhanced material flow, and a simplified rear profile for the impactor chamber. The I54Rv3’s radial return conveyor features full length dust suppression control, allowing operators to recirculate oversize material from the screenbox back to the feed hopper or radial a complete 90° while running.

Small footprint – big results

The I34R Compact Crusher, McCloskey’s newest member of the impactor family, is the perfect solution for projects with small footprints but big requirements. The compact, mobile crushers are suited particularly to construction and demolition recycling, asphalt recycling and aggregates.

The compact impactors deliver high performance and expanded versatility in a highly mobile line-up to customers around the world. With their fast set-up time and ability to nimbly move around in tight spaces, the crusher’s small footprint is uniquely suited to the recycling, demolition and smaller scale construction projects where space is at a premium, and manoeuvrability is key. The compact transport dimensions (less than 2,5 m wide) allow easy transport from site to site.

New ST100TF Radial

bauma visitors will get a first look at McCloskey International’s new tracked radial feeder stacker – the ST100TF Radial – with an innovative Patent Pending design that allows the switch from track to radial mode in seconds.

Built-in levelling indicators allow operators to position the stacker regardless of the ground evenness, with independent hydraulic jack legs to stabilize once in place. A level gauge allows operators to position the stacker for maximum production. The tyres on the ST100TF Radial have an aggressive tread pattern for better traction in rough terrain.

All the new radial stackers feature a patented rear counterweight that counter balances the tracks and wheels, enabling a much higher stockpile capacity and delivering greater stability to the stacker while in operation.

The ST100TF Radial’s unique tool free transport design allows the equipment to move freely from site to site without needing to remove the wheels, delivering true portability for multi-site projects and operations.

MWS compact sand plants

McCloskey Washing Systems will present the CSP120 at bauma 2019, which delivers superior separation efficiency, produces the driest, drip-free final washed sand product in its class, and produces up to two in-specification sands, to desired grade, at up to 120 total tph.
